1-24 Core FTTH Flat Single-Tube Dielectric Aerial Outdoor Drop Fiber Optic Cable GYFXTBY

  • 1
  • 2
  • 3

Brand Name : PUNAISGD

Model Number : GYFXTBY-12b1.3

Certification : CE/ROHS/ISO9001

Place of Origin : Guangdong, China

MOQ : 1km

Price : negociate

Payment Terms : T/T,Western Union

Supply Ability : 1000000km/month

Delivery Time : 7days

Packaging Details : woode drum

Type : GYFXTBY-12b1.3

Cores : 12 fibers

Strength Member Material : FRP

Construction : Central Loose Tube

Useful : Outdoor Fiber Optic Cable

Transport Package : Wooden Drum

Cable Dimension : 6.5mm

Jacket Color : Black

Mode : Singlemode G652D

Name : Outdoor Fiber Optic Cable

Contact Now

1-24 Core FTTH Flat Single-Tube Dielectric Aerial Outdoor Drop Fiber Optic Cable GYFXTBY

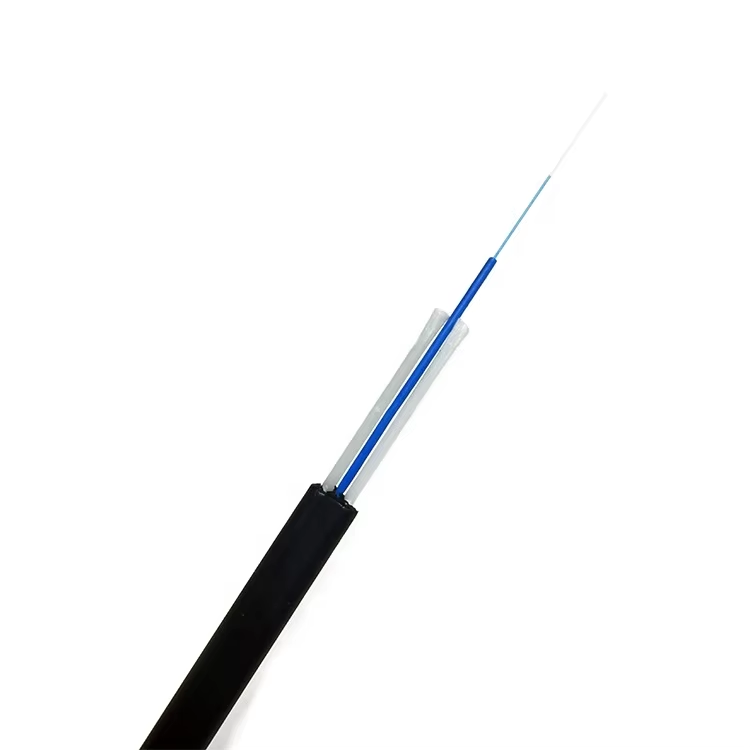

GYFXTBY fiber optic cable is an arc runway fiber cable, which is made of multiple( 1-24 cores ) 250um
colored fibers embedded in the internally filled waterproof compound loose tube made of high-modulus plastic, two non-metallic tensile element ( FRP ) is placed on both sides of the loose tube, and a rip cord is placed on its outer layer, and then the high-density polyethylene is extruded to form an HDPE sheath.

Feature:

  1. Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
  2. PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
  3. Fiber optic cable is non-metallic structure. light weight, easy laving,. ant-electromagnetic, lightning protection effect is better
  4. Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
  5. Compared with butterfly. shaped optical cable. runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
  6. improve the construction efficiency
  7. Easy to peel, reduce the time of pulling out the outer
  8. It has the advantages of corrosion resistance.UV protection and environmental protection

1-24 Core FTTH Flat Single-Tube Dielectric Aerial Outdoor Drop Fiber Optic Cable GYFXTBY

1-24 Core FTTH Flat Single-Tube Dielectric Aerial Outdoor Drop Fiber Optic Cable GYFXTBY

General Specifications
Cable Type 4 Core GYFXTBY Outdoor Flat Fiber Optic Cable
Fiber Type SM G657A1/ SM G657A2
Application FTTH, LAN
Recommended installation methods Aerial
Environment Indoor
Temperature Range -40ºC to 70ºC
Fiber Specifications
Fiber style Unit SM G652D SM G657A1 SM G657A2
Condition nm 1310/1550 1310/1550 1310/1550
Attenuation dB/km ≤0.36/0.23 ≤0.35/0.21 ≤0.35/0.21
Dispersion 1310nm Ps/(nm*km) ≤18 ≤18 ≤18
Dispersion 1550nm Ps/(nm*km) ≤22 ≤22 ≤22
Zero dispersion wavelength nm 1312±10 1312±10 1300-1324
Zero dispersion slope ps/(nm²×Km) ≤0.091 ≤0.090 ≤0.092
Standard Color Identification of Fiber
No. 1 2 3 4
Color Blue Orange Green Brown
Strength Member

The strength member is made of Aramid yarns. It provides tensile to the cable. Sheath protects cable from water intrusion.

Outer Jacket

PE sheath is extruded over the fiber.

Cable Sheath Marking

Each cable have the following information clearly marked on the outer jacket of cables:

  • Name of manufacturer
  • Year of manufacturer
  • Type of cable and fiber
  • Length mark (printing on each meter normally)
  • Or as customer's requirements
